6063 T6 Aluminum Flat Bar Stock


6063 T6 aluminum flat bars are composed of aluminum (minimum 98.3%) with small amounts of other elements. The T6 temper refers to the heat treatment process that improves the material's strength and hardness.

Common Sizes Chart for 2011 Aluminum Flat Bar:

  • Width: 1/4 inch, 1/2 inch, 3/4 inch, 1 inch, 1 1/2 inch, 2 inch, 3 inch, 4 inch

  • Thickness: 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, 5/8 inch, 3/4 inch, 1 inch

* Specific size customized on demand.


  1. Lightweight: 6063 T6 aluminum flat bars have a low density, making them lightweight and easy to handle.

  2. Corrosion-resistant: The aluminum content in 6063 T6 provides excellent resistance to corrosion, allowing it to withstand harsh environments.

  3. High strength-to-weight ratio: 6063 T6 aluminum flat bars offer strong mechanical properties while maintaining a low weight, making them suitable for structural applications.

  4. Good formability: This alloy can be easily formed into various shapes and profiles, making it versatile for different applications.

  5. Excellent surface finish: 6063 T6 aluminum exhibits a smooth and aesthetically appealing surface finish, making it suitable for decorative or architectural purposes.

  6. Good thermal conductivity: Aluminum has high thermal conductivity, allowing efficient heat transfer, making 6063 T6 flat bars suitable for heat sinks and similar applications.

  7. Electrical conductivity: Aluminum has good electrical conductivity, making 6063 T6 flat bars suitable for electrical applications.

  8. Recyclability: Aluminum is highly recyclable, making 6063 T6 flat bars an eco-friendly choice.

  9. Non-magnetic: Aluminum is non-magnetic, which is advantageous in certain applications where magnetic interference needs to be minimized.

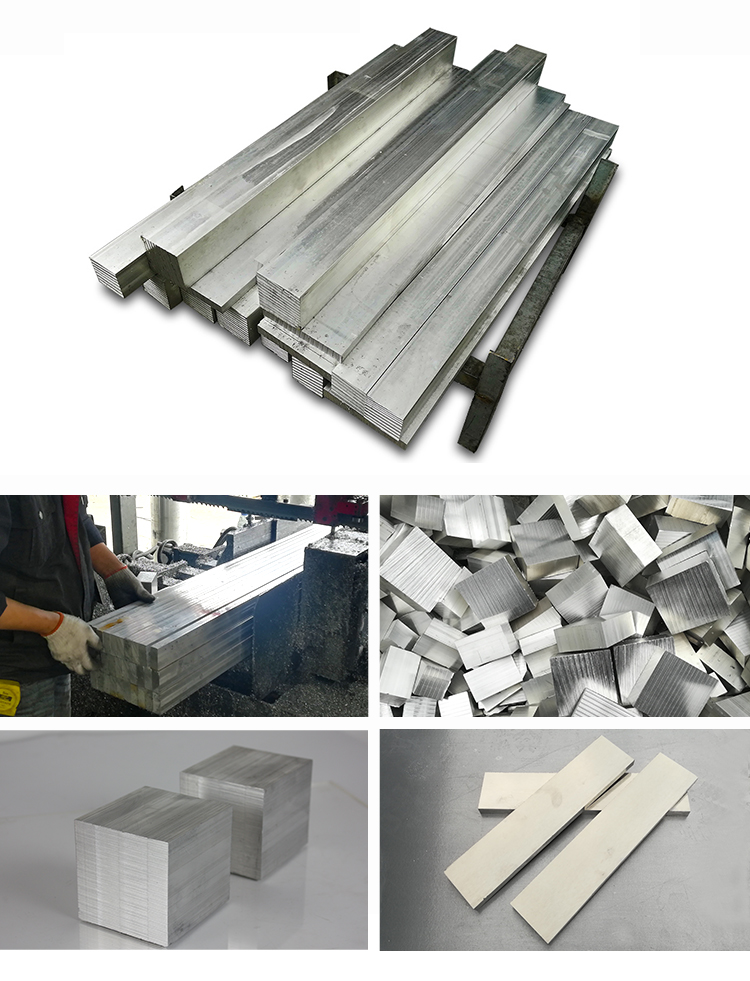

Flat Aluminum Bar in Stock

The chemical composition chart of 6063 aluminum flat bar is as follows:

  • Silicon (Si): 0.20 - 0.6%

  • Iron (Fe): 0.35%

  • Copper (Cu): 0.10%

  • Manganese (Mn): 0.10%

  • Magnesium (Mg): 0.45 - 0.9%

  • Chromium (Cr): 0.10%

  • Zinc (Zn): 0.10%

  • Titanium (Ti): 0.10%

  • Others (each): 0.05%

  • Others (total): 0.15%

  • Aluminum (Al): Remaining balance

Aluminum Bar Parameters

Model NumberAluminum Flat Bar
Grade1000, 2000, 3000, 4000, 5000, 6000, 7000 Series
Surface TreatmentMill Finish
Alloy Or NotIs Alloy
Yield (≥ MPa)310
TemperT3 - T8
Ultimate Strength (≥ MPa)240
PackagingStandard Export Packaging
Delivery Time15-30 Days


2-800mm ,Contact Us For Exact Value


3000mm, 2500mm, 6000mm, Can Cut To Short Sizes

Optional Service

Cutting, Anodizing, Custom-Made


Bright, Polished, Hair Line, Brush, Embossed, Etc

Payment Term

L/C , D/A , D/P , T/T , West Union , Money Gram , Other


Export Wooden Pallets, Plastic Film,(Ship By Sea)
